CADintosh X

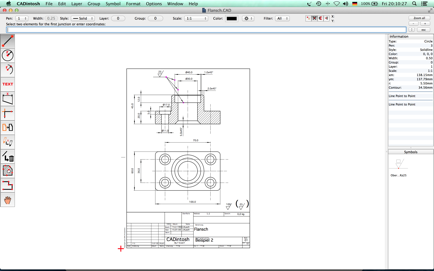

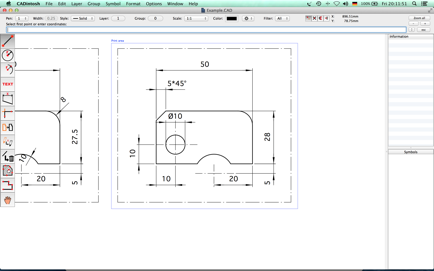

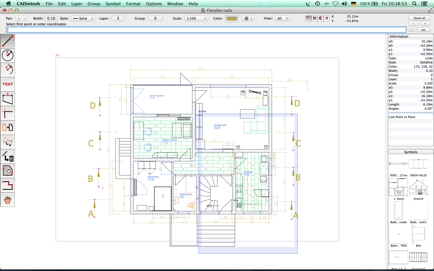

CADintosh X is a 2D-CAD program for technical and architectural drawings.

Features

• Interactive window redrawing (you can work in the same time of the window redrawing)
• Number of elements limited by memory
• Pen oriented mode: 8 line widths/line colors/pens
• Individual mode: line width from 0.0 to 99.99 mm, pattern and colors
• It has a lot of tools like lines, arcs, dimensions, splines, hatching etc.
• Import and export HPGL, DXF, and PICT
• 6 line types (solid, dash, dot-dash, phantom, zigzag, dotted)
• 32000 groups
• 1024 layer
• Alternative units in inches or freely definable
• Shareware version has a simple layer filter (easy to use)
• Registered version has a additional extended layer filter (named filter sets, palette with name of filter)
• Shareware version has internal symbols (number of symbols only limited by memory)
• Registered version has additional external symbol libraries and more simple work with symbols
• User preferences saved in the drawing
• Runs native on OS X
